Mastering Home EV Charger Installation: Essential Insights for Every Owner

EVs are rapidly becoming a viable option to a number of households as they come with sustainability, long-term economic benefits, and unrivaled convenience. As this monumental change has occurred, it is seeing more and more homeowners realizing the great potential behind the idea of having an EV charger at home. It changes the way you drive your car, as your car is ready all the time and you do not have to waste time searching the charging points of the population.

To most first-time EV customers, the concept of having a home EV charger can be a little bit daunting. The most typical obstacles are questions regarding wiring, permits, safety and cost. The process however is much easier than it may appear particularly with clear and actionable instructions. This guide divides the key things you must be aware of, and you are able to comfortably complete your home EV charger installation process.

1. Reasons Why Home Charging is a Game Changer

The vast majority of EV drivers prefer to charge 80-90% of the charging at home, so a high-quality charger can be a good investment in order to make the battery driving experience much more enjoyable. Imagine that by the end of a working day, you pull into your driveway and realize that you will be able to go to work the next day without having to make any detours to commercial charge stations or stand in queues in the line.

Benefit of home charging and lifestyle effects:

• Home charging removes the necessity of traveling to the public stations regularly.
• Quicker domestic charge powers save a lot of time when it comes to waiting before a complete battery.
• Electricity can be scheduled during off-peak periods to reduce the electric bills.
• An installed residential charger would add value to property and attract a new buyer.

In addition to mere convenience, home chargers are considerably quicker and efficient than using the conventional wall socket. Using an electric vehicle charger installed correctly, you will significantly reduce the amount of time spent on charging, and overnight replenishment will be an unproblematic part of your daily routine. This gets rid of the range anxiety that comes with owning EV.

Moreover, home EV charging will provide you with a higher level of control over your electricity consumption. Most utility companies have cheaper rates during the off-peak period, which means that you can plan the time to charge at the most convenient time to save on your electricity bill. An inbuilt charging station is also very important and attractive to your property, and this is an added advantage to your property in case you are willing to sell it someday as it will be an important feature to eco-conscious buyers too.

2. EV Charger Decoding Level 1 and Level 2

The first thing is to know the various kinds of EV chargers out there. At present, three major types of EV chargers exist: Level 1, Level 2, and Level 3. All levels provide faster charging rates but need more power and in the case of Level 2 and 3 need particular requirements in terms of installation. It is worth mentioning that the public Level 3 fast chargers are not placed in houses because they demand extremely high power.

Knowledge of charger differences and appropriateness:

• Level 1 chargers are used in regular 120 V electrical sockets, and they come with the majority of EVs.
• Level 1 is slow and not expensive to short distance drivers.
• Level 2 chargers work on 240 V circuits, and they are much faster than Level 1.
• Level 2 is the most desirable option when it comes to the daily EV drivers that would like to have a reliable overnight charging.

Level 1 chargers are the easiest; they just have to be plugged into a normal 120 V wall outlet, and they may be included with your car when you purchase it. It does not require any electricians or installations of any kind, you simply plug in. They are however very slow and may consume up to 10 or more hours to recharge a typical car battery. They are the most appropriate when you have to cover short distances with some longer ones, and the cheapest charging option is provided at no upfront installation cost.

Level 2 chargers are a major improvement, as they have the capacity to recharge an average EV battery within a period of 4-5 hours, which is approximately half of that of a Level 1 charger. A Level 2 system is almost always involved in the installation of home chargers. These chargers work on a 240-volt circuit, which is used by large appliances such as clothes dryers, and can usually need modifications of your home electrical system, including special circuits and outlets. Such a price is optimal among everyday drivers of EVs who require convenient overnight charging.

3. Electrical Panel Capacity Checking Your Home

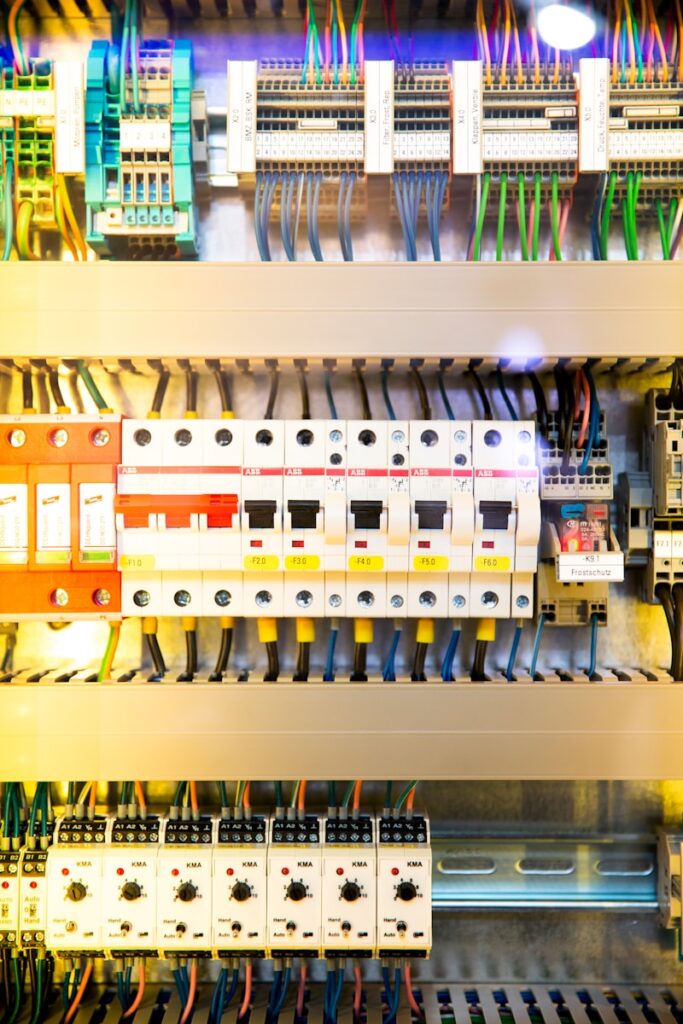

The important thing to do before installation is to determine the electrical capacity of your home. An EV charger in the house uses a lot of power and your primary electrical panel must be capable of supporting this extra load. Your main panel will normally be found in your garage, basement or in front of your house.

Evaluation of electrical preparedness and electrical safety:

• Note the amount of amperage of your main panel, which is usually 100A, 150A or 200A.
• The charger typically needs a special breaker of 50 amps.
• When your panel is almost at capacity, then an upgrade can be required.
• Upgrades on panels are between 500-2000 and are safe and reliable to charge.

After locating your panel, verify its amperage and this is usually 100A, 150A or 200A. An average 40-amp charger, e.g. might need a special 50-amp breaker. In case of an existing panel that is already at its limits due to the existing appliances, then you may require an electrical panel upgrade. It might be an additional cost of $500-2000 to your installation fee but it is necessary to charge safely and reliably, and it is one of the most popular reasons why an installation bill might start rising up the ladder.

4. Choosing the Ideal Charger to use

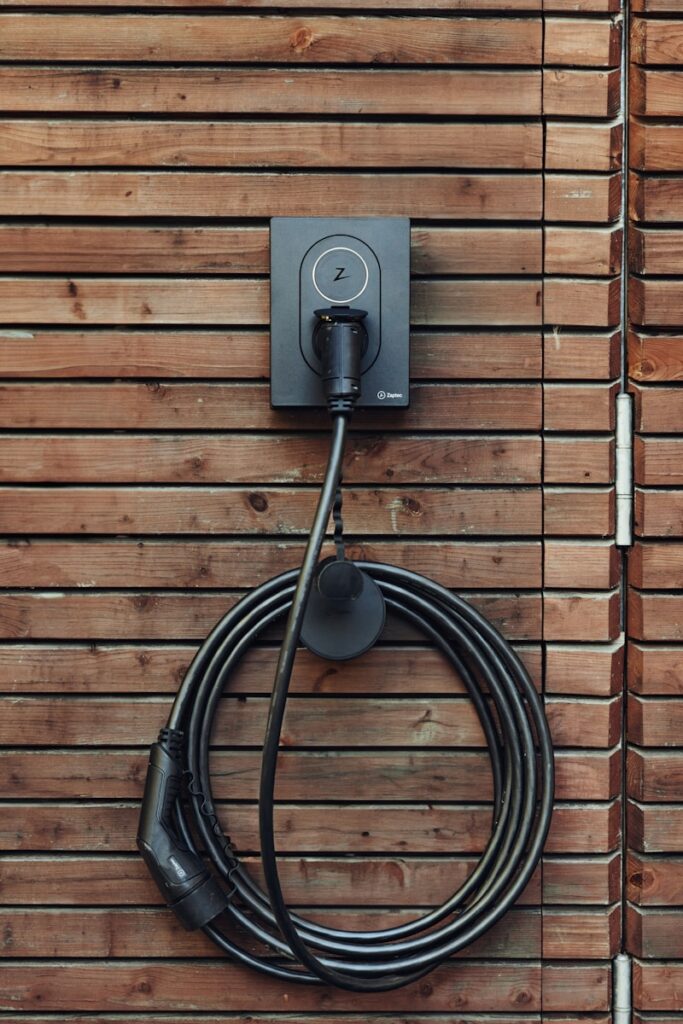

EV chargers are available in a great range of prices, functionality, and compatibility. You can purchase an electric charger Level 2 on your own, or your electrician of choice might have one in stock. Popular brands installed by electricians include the Tesla Wall Connector (as well as the J1772 Wall Connector when connecting to non-Tesla EVs), Wall Box Pulsar Plus, Juicebox, and ChargePoint.

The selection of the appropriate charger attributes and the benefits in the long run:

• Take into account the power rating (16A, 32A, 40A, 48A) to suit your EV onboard charger.
• Choose between plug-in and hardwired models depending on convenience and beauty.
• Such smart features as Wi-Fi and app control enhance scheduling and energy control.
• The cord must be long enough to reach your car port where it is usually about 20 feet.

When selecting, make sure to select the power rating of the charger (i.e. 16A, 32A, 40A, 48A) and make sure that it is compatible with the onboard charger of your vehicle. You will also have to make a choice between a hardwired or a plug-in model; plug-in models have outlets such as NEMA 14-50 and can be moved around, whereas hardwired models are permanently mounted to create a cleaner and safer installation. Additional smart features like Wi-Fi or app control to schedule, monitor costs and load balancing (when multiple EVs are connected) are also useful features.

Also keep in mind the practical aspects such as the length of the charging cord that is typically 20 feet in length so that it can easily reach the wall to the port of your car. One of the smartest things to do to future-proof your system is to pick the largest amperage charger that your panel can safely carry, even though your existing EV may not be using it to its full capability.

5. Learning about Local Permits and Building Codes

The installation of an EV charger, in particular, Level 2 one, frequently needs a local permit. This is not merely a case of bureaucracy, but a very important step that would help to make sure that your installation is up to all the required safety codes and standards. The inability to obtain the necessary permits may even render the insurance of your homeowner or charger warranty null and cause a lot of trouble in the future.

Managing local legislation and compliance requirements:

• To verify certain permit requirements, contact your local building department.
•  Post-installation inspections are normally done to confirm compliance with safety.
•  A permit is usually dealt with by a licensed electrician who also makes sure that codes are followed.
•  Code requirements can be GFCI protection, correct conduit and weatherproofing.

The initial step that you need to take is to call your local building department to find out what they need. An inspection should also be expected after the installation has been done to check on compliance. The need to have a licensed electrician sign off the work by many areas will further highlight the need to have professionals involved. The permitting process will be normally done on your behalf by a reputable licensed electrician who will negotiate the sometimes-difficult terrain of local regulations.

As an example, in most areas, code requirements can involve certain details such as GFCI (Ground Fault Circuit Interrupting) protection, installation of conduit to support wiring, and sufficient weatherproofing in case the unit is placed outside. These steps will protect your house and provide the safe and long-term work of your EV charger.

6. The Importance of a licensed electrician

Although the temptation of DIY may be strong, especially when there are instructional videos that are easy to access, electrical work is always dangerous and complicated. There are high risks involved in a self-installation of a Level 2 charger such as the possibility of electrical accidents or worse still, house fires, which is much more expensive than the cost of a professional. So, it is highly advisable to hire a licensed electrician to ensure the safety and compliance.

Professional expertise and safety assurance:

• An electrician who is licensed reduces the chances of electrical hazards and fire.
• Professionals will direct you on the choice of chargers to the allowance to handle.
• Warranties and peace of mind are offered by certified installers.
• By employing a skilled workforce, efficiency and quality of work will be enhanced.

Having a professional installation team is priceless as they have the experience and can lead you through the whole process with the choice of the correct charger and permits and final details. Such companies as Qmerit, with which Chevrolet cooperates on the installation of the new Chevy Bolt, introduce homeowners to qualified specialists, like Kapital Electric, proving that the industry requires the services of experts.

When recruiting an electrician, it is important to ask the following questions: Does he/she have any experience with EV charger’s installations? Are they able to help in acquiring the required permits? Are they warranting their work, so that there is peace of mind? And most importantly, what is the approximate cost, both labor and parts? Not only is a certified installer safe and compliant but efficient as well, completing the job the first time.

7. The Process of the Physical Installation

The physical implementation, in the hands of professionals, is not so difficult when the planning is done. It normally starts with a site assessment which involves the electrician inspecting the place that you have decided to install your charger, the distance to your main electrical panel and whether your existing system can handle the extra load. They will also determine the most convenient places to wire and any barriers that may be there like a completed wall or a detached building like a garage.

The steps and procedures to have a smooth charger installation:

• Electricians evaluate site layout, panel capacity and wiring paths.
• Wiring is laid in a safe manner usually through ceilings, walls and underground trenches.
• The chargers are firmly fixed and attached to the electricity.
• The charging performance and management are optimized with the help of app set up and Wi-Fi connectivity.

After planning and permits are in place the actual work starts. As an example, in a two-EV installation that was observed, the team ran wiring through the ceiling and through the electrical panel in the basement of the house, through a hole that was drilled at the back of the house. Then they excavated a trench to bury the wire in the lawn, then drilled into the garage wall and pulled the wire through the wall making a clean and safe connection.

The wiring was carried along the wall in the garage and fed into a splitter box which was then split to the two individual chargers. Once the chargers had been firmly attached to all the walls, they were switched on. It needed a few setup steps, which included scanning a QR code with the quick start guide, setting up settings with an app, and Wi-Fi connection. This connectivity enables the chargers to communicate, control the power flow, and optimize the charging rates, particularly when two or more vehicles are connected.

8. Knowing the Entirety of Installation Costs

You should be prepared to take home EV charging, but you need to know that the financial cost of the process is not limited to the charger itself. Although the unit is usually between 500 and 800 dollars, the overall cost of installation including labor and other materials such as wiring is normally around 2,000 dollars on average. This estimate typically applies to the most basic cases, like when your electrical panel is well-placed, like in the case of an attached garage, and a single charger is being installed.

Budgeting and financial issues:

• EV charger units are available at an average of $500-800 with features.
• In simple cases, the average cost of total installation is about 2000 dollars.
• Costs can be very high due to site-specific factors.
• It is better to get several quotes so that the estimate is fair and correct.

Nonetheless, this number is only a starting point. The end cost will vary greatly depending on the electrical infrastructure of your home and the job difficulty. It is always a good idea to shop around because even the installation of one charger can sometimes be very expensive, up to 8000 dollars in more complicated cases as witnessed by homeowners.

9. Major Considerations that increase the costs of installations

There are a number of typical situations that may increase the cost of installing your EV charger. An electrical panel upgrade is one of the most common causes of an increase in the bill. With an older 100-amp panel in your home that is already approaching its capacity, then it is quite likely that adding a 40- or 50-amp charger will require you to upgrade to a 200-amp service. This is a necessary safety and reliability upgrade that can readily increase your total cost of installation by an additional $500-2,000.

Factors that contribute to increased expenses and complex constructions:

• Upgrades of older or overloaded systems to panels may be expensive.
• Detached garages can be very laborious in trenching and wiring.
• Prolonged or lengthy wiring paths add to labor and material costs.
• Site appraisals avoid surprises in terms of costs and time.

In addition to panel upgrades, other site-specific issues may add up to costs. Placing a charger in a separate garage, such as one, will frequently involve a lot of trenching to get power to your main panel underground, which will be costly in terms of labor and material. Likewise, wiring that is long and goes through completed walls or complicated routes may also take a long time to install. All these reasons explain why a comprehensive site examination by a qualified electrician is an essential preliminary measure.

10. Savings Unlocking: Rebates and Incentives

The initial expenses should not discourage you too much, as there is usually a lot of potential savings that can be made to make home EV charging more affordable. In August 2022, the federal Inflation Reduction Act was enacted which offers a significant 30 percent credit, up to 1000 dollars, on the installation of residential EV chargers. It is one of the federal incentives that a large number of homeowners can take advantage of.

Monetary rewards and cost-saving benefits:

• Federal tax credits allow 30 percent of cost of installation, not exceeding 1000 dollars.
• State programs can pay up to 80 percent of the costs.
• Rebates or special EV rates are sometimes provided by utility companies.
• Local and state program checks are necessary to make sure that eligibility is achieved, and that maximum savings are made.

Outside of federal programs, there is a complex yet valuable environment of state and even local incentives. Most states, such as Illinois, have very generous reimbursements, and in some cases, they can pay up to 80% of the cost of installation. Utility companies also often offer rebates or special EV-specific electric rates that can also cut your investment and continuing charging costs. Since these programs may vary greatly and even become outdated soon, the Qmerit CEO Tracy Price recommends that a consumer should pay close attention to the specifics and verify that the program is applicable to their local utility and state energy office before buying it.
